The Best CNC Machine Manufacturer in Surat

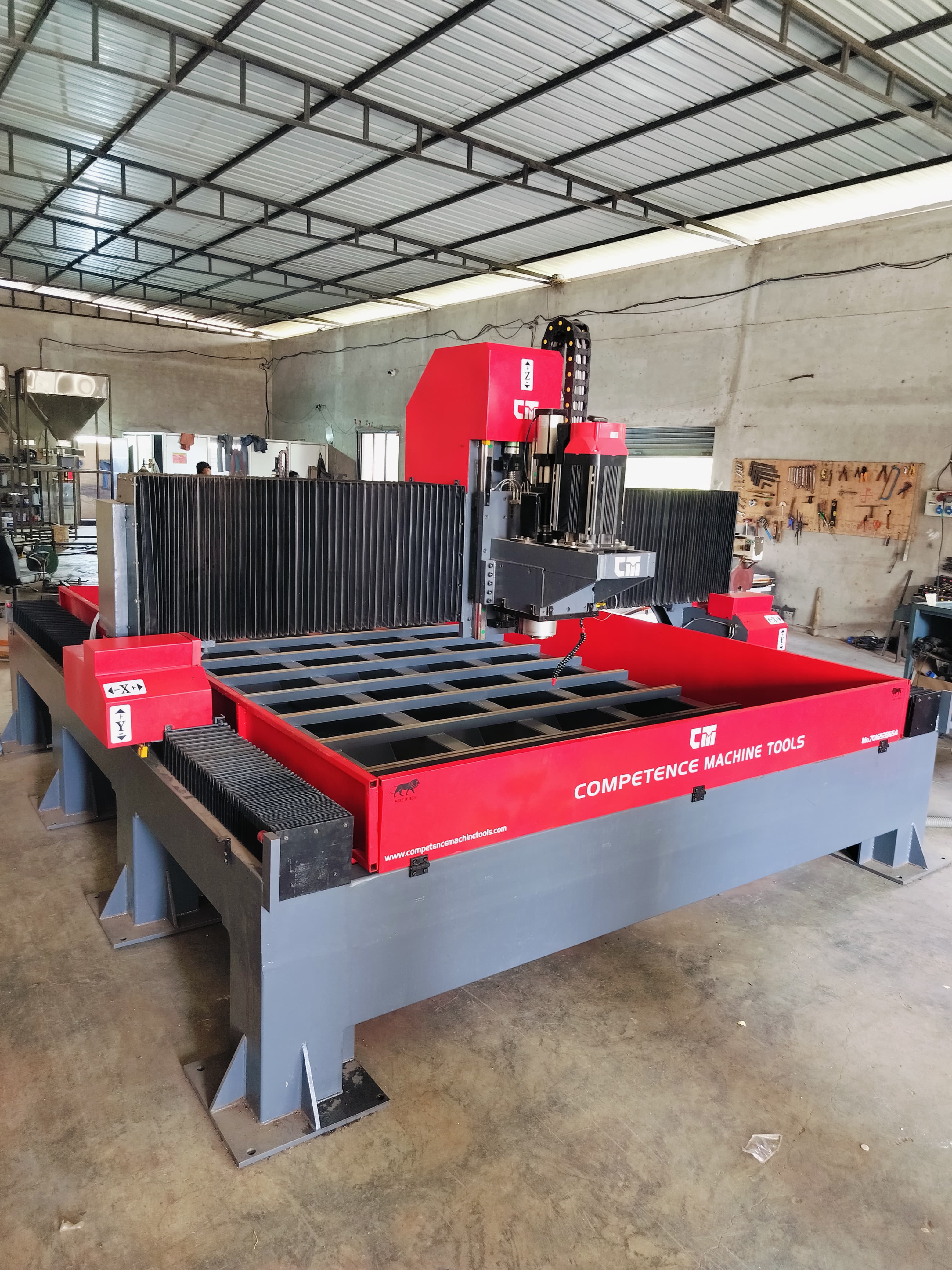

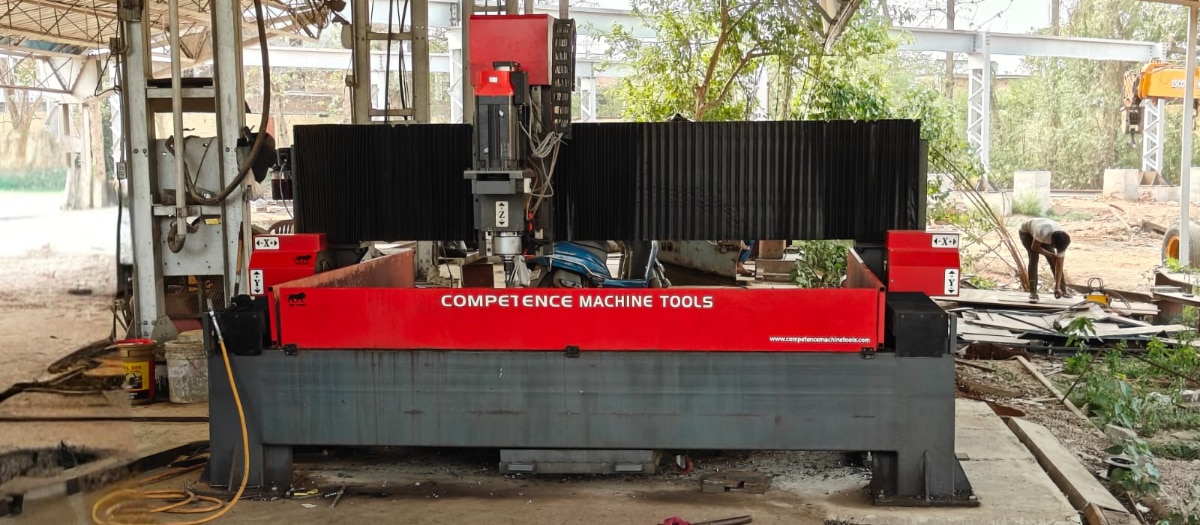

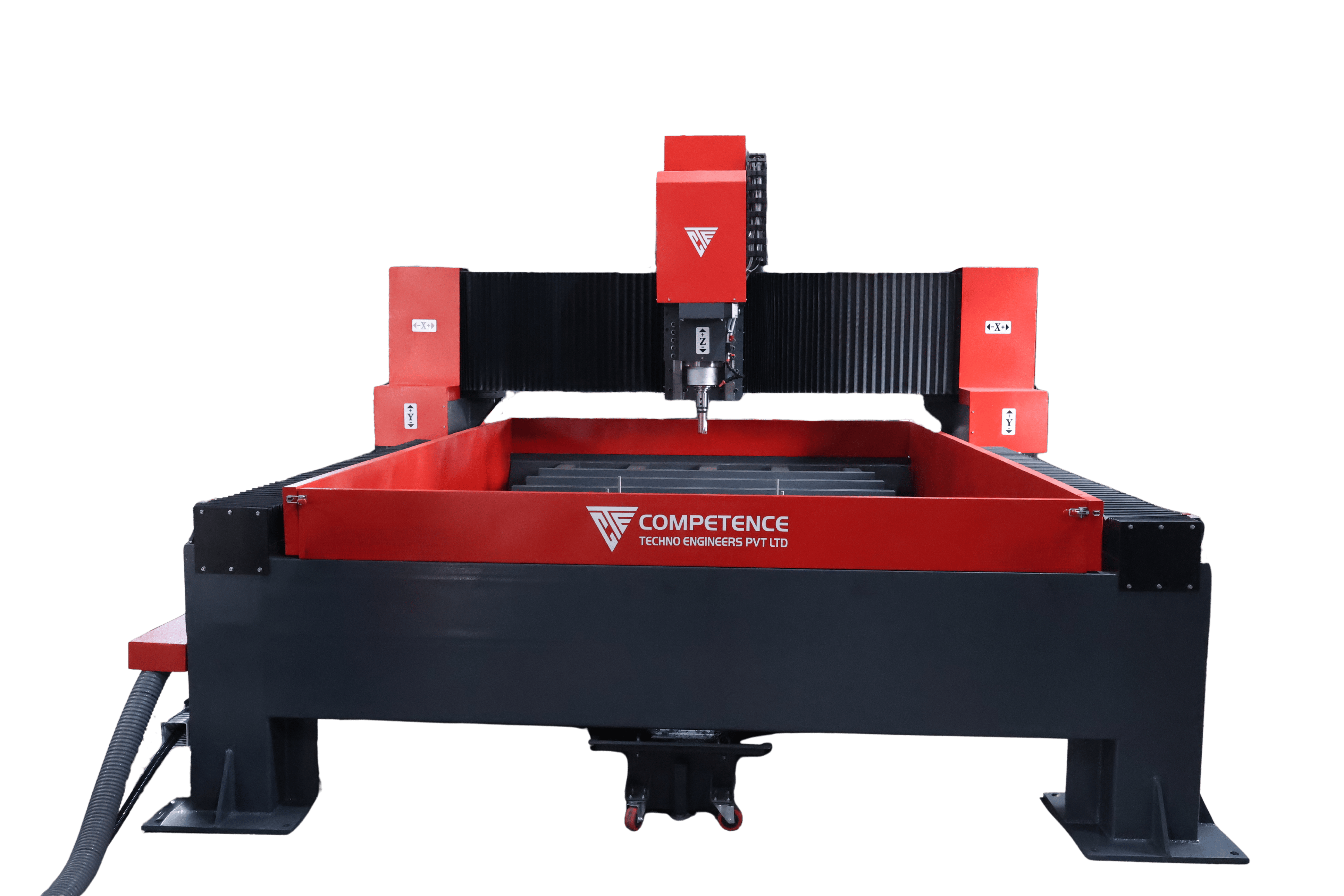

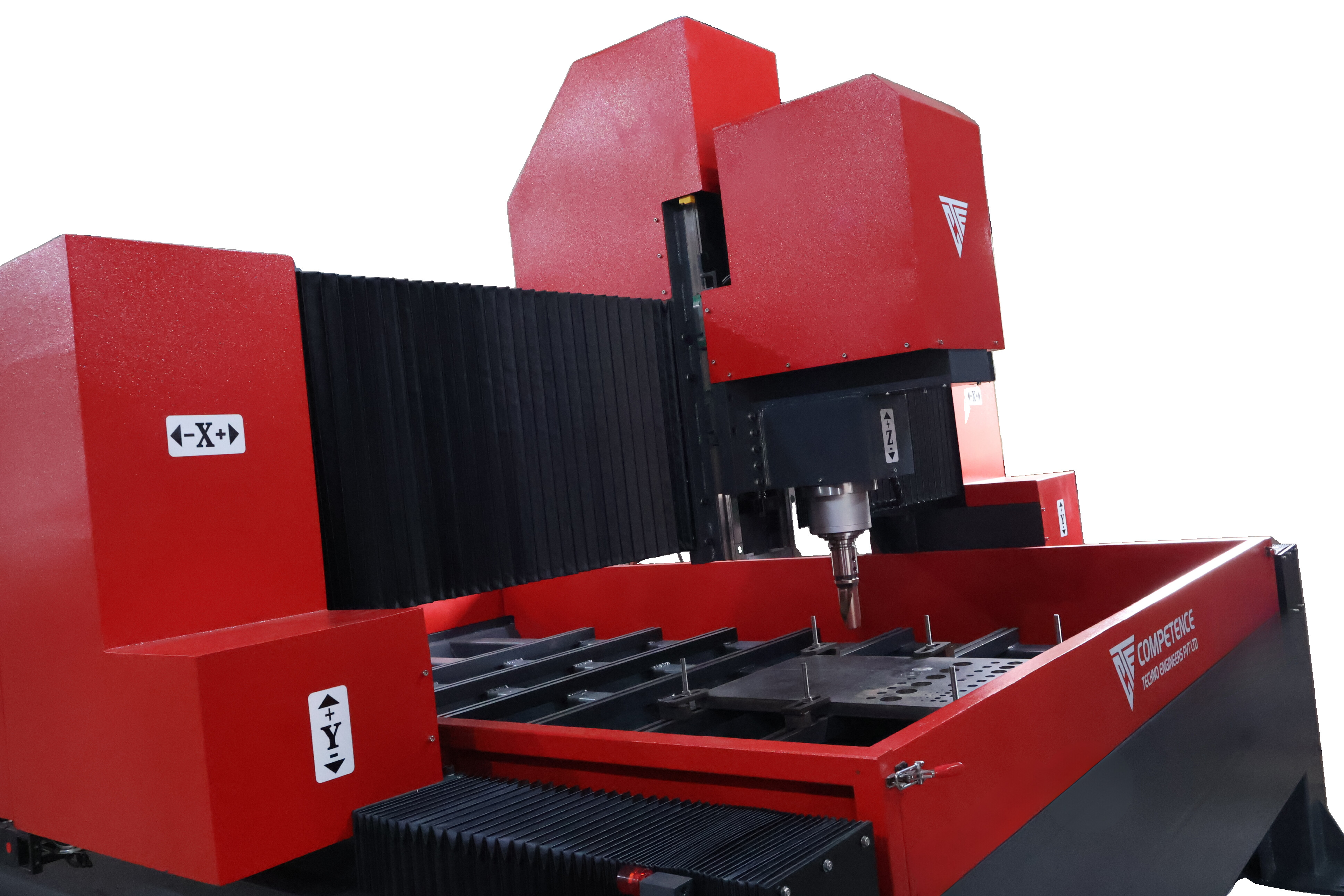

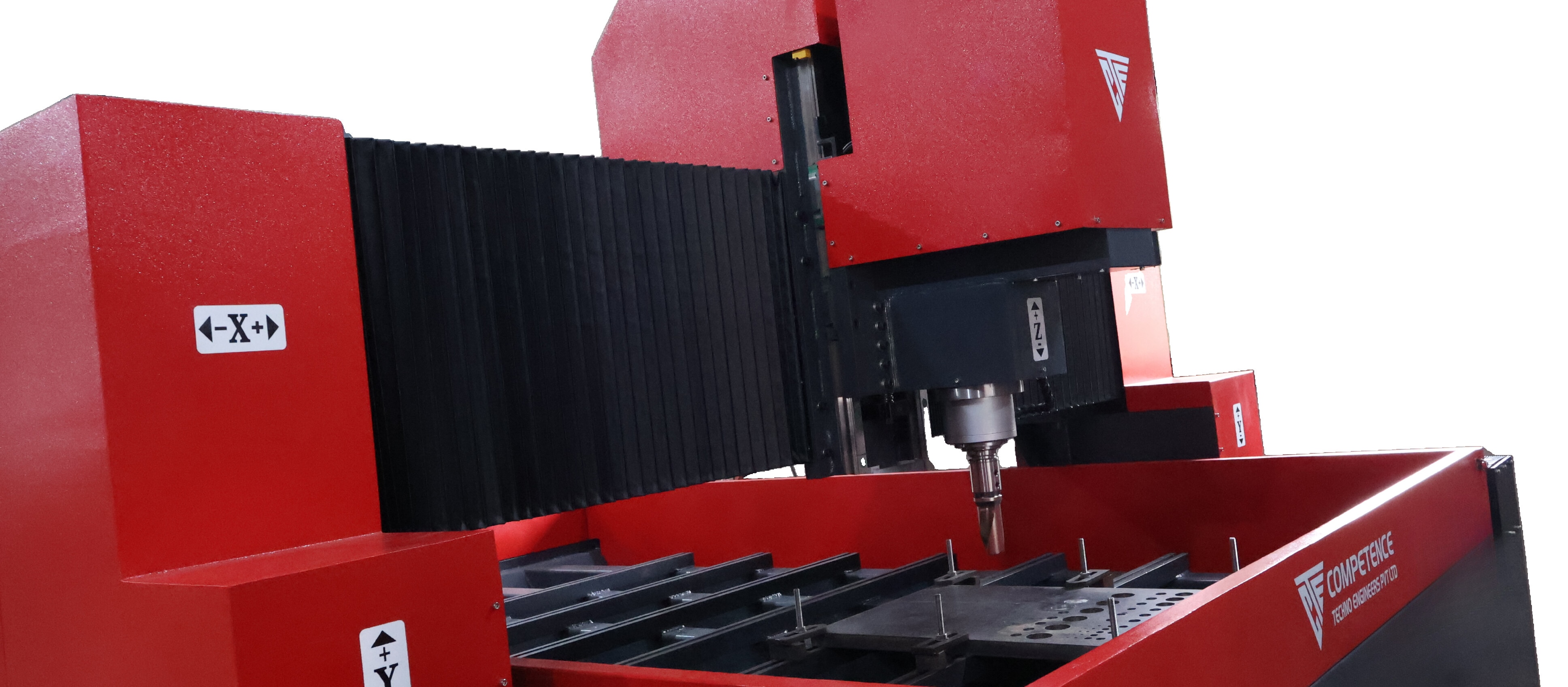

• WORKING AREA:1000 X 2000 X 200 MM 2000 X 3000 X 200 MM 2500 X 4000 X 200 MM • TRANSMISSION:X , Y AND Z AXIS TRANSMIT BY BALL SCREW. • LINEAR GUIDE & RAIL AND BALL SCREW:45 MM LM GUIDE AND 40 MM BALL SCREW • DRILL SIZE:UP TO 25 MM DRILL (U-DRILL APPLICABLE ONLY) • SPINDLE TYPE:BT 40/50 -150CTC (THROUGH COOLENT) • LUBRICATION SYSTEM: AUTOMATIC • SPINDLE MOTOR:7.5/11 KW MOTOR DRIVE • DRIVE MOTOR:SERVO MOTOR DRIVE • CNC CONTROLLERS:MITSHUBISHI M80 OR EQUIVALENT • WORKING COMMAND:G-CODE

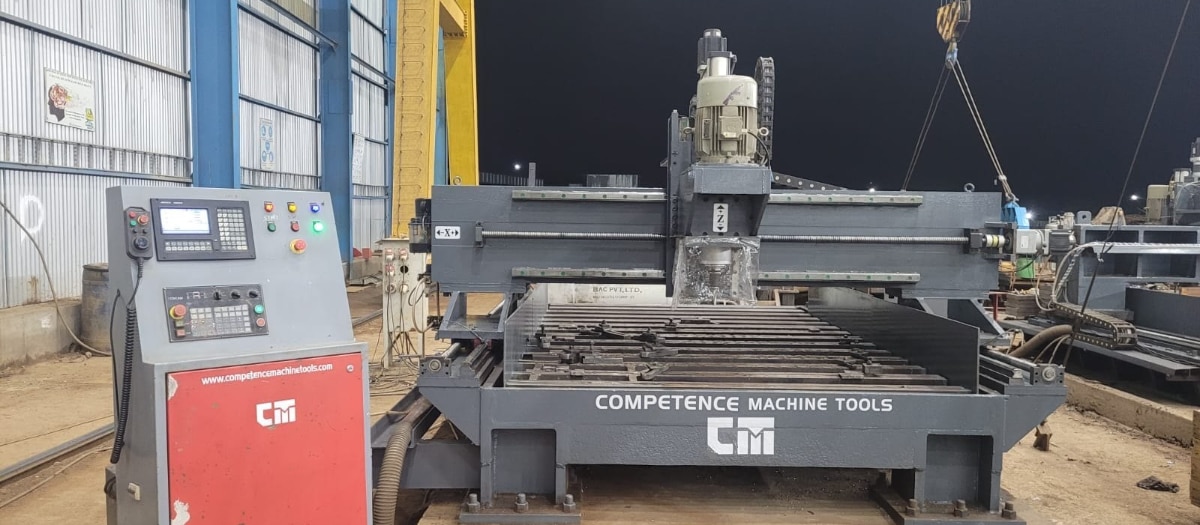

Technical Specification Working Area : X Axis-1500/2000/2500MM, Y Axis-2000/3000/4000 MM, Z Axis-200 MM Linear Motion: 45 MM LM Guide & Block For X ,Y& Z Axis,2M Rack In X,Y Axis & 40MM Ball Screw in Z Axis Gear Box :1:5 Planetary Gear Box Spindle Type:BT40 With Through Coolant Spindle Motor : 7.5/11 KW Spindle Motor, Max 6000rpm Spindle Run Out:+/-2 Micron Driving Motor: Panasonic motor drive Repositioning Accuracy: +/- 50 Micron/Meter Hole Diameter Tolerance: +/- 70-100 Micron Drilling Capacity: Up To 40mm Diameter Maximum Drilling Thickness: Up To 100mm CNC Controller: ADTECH Lubrication: Easy Lube Make Automatic Chip Conveyor : Standard Chip Conveyor Axis Cover: PU Bellow Cover In All Axis Machine Structure: Fabricated Working Command : G-Code Power Supply: 430V , 50/60Hz-3 Phase

CNC drilling is a machining process that utilizes a rotating cutting tool to produce round holes in a stationary work piece. The holes are typically made to accommodate machine screws or bolts for assembly purposes. However, they can be used for aesthetic purposes depending on the design of the component.
